i2M Chrome PLUS 2 Full Color 5" LCD Dash & GPS Lap Timer - Plug & Play - Honda, Kawasaki, Suzuki, Yamaha, Ducati, MV Agusta, Aprilia, BMW

Chrome PLUS 2: a new step forward

Made thanks to the experience gained with the PRO2, the new Chrome PLUS2 can boast more than 150 acquisition channels, Dual Core processor, integrated Bluetooth receiver for connection with heart sensors and latest generation GoPro.
The new PLUS2 combines the features of its predecessor, such as the video input or the integrated lambda controller, with new RGB LEDs and the ability to manage parametric sensors, all in a new ultra-slim look.

Please note: BMW and Aprilia applicarions may lose headlight functionality.

Thanks to the use of a new dedicated hardware based on a dual core processor, the Chrome PLUS2 2 is able to read and acquire over 128 Can Bus channels alongside the 30 standard ones including speed, rpm, external analogue, tire pressures and temperatures. , GPS, gears, water, oil ...The new hardware makes it possible to make the acquisition of channels completely configurable with a maximum frequency of 500Hz for each channel.Great attention was paid to the total configurability of every aspect starting from the alarms, now all RGB, up to the possibility of creating non-linear sensors for each input.A new integrated wiring with a single IP67 connector and new adapter cards complete the new experience linked to Chrome PLUS2.

Thanks to the new PLUS2, the Chrome family further increases its performance while leaving the user the possibility to choose the version that best suits his needs. The table on the side summarizes the main differences between our three Chrome.

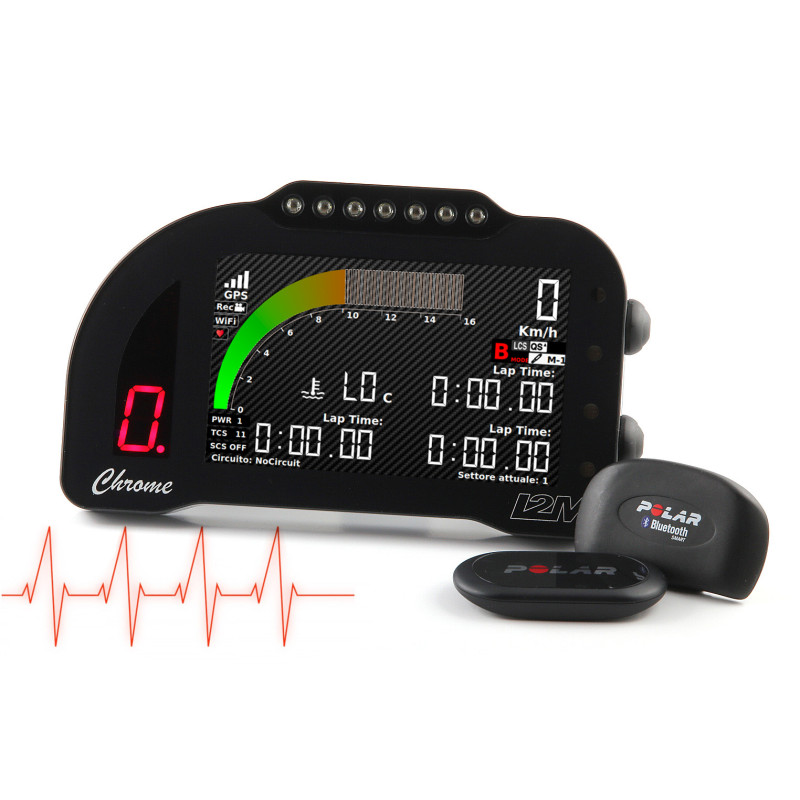

Thanks to the new integrated Bluetooth BLE receiver it is possible to connect the Chrome PLUS2 to a Polar H7 or H10 heart rate sensors. A heart-shaped icon on the screen will indicate the connection has been made by making the heart sensor on the screen in proportion to your heartbeat. The data is then acquired in order to be subsequently re-examined in order to plan a correct physical and targeted training based on personal physical effort.The integrated BLE connection allows PLUS2 to also connect to GoPRO HERO9 and HERO10, thus managing their registration directly.

The Chrome PLUS2 2 is equipped with a video input to which it is possible to connect a Logitech C270 cam with 1280x720 25fps resolution, while the audio recording is made by an internal microphone so as to be shielded from the wind giving an excellent rendering of the vehicle sounds. A CNC aluminum case is available to replace the original plastic case of the C270 logich. This allows you to make the webcam watertight by equipping it with a convenient attachment compatible with GoPro supports and a screw binder connector to connect it directly to Chrome.

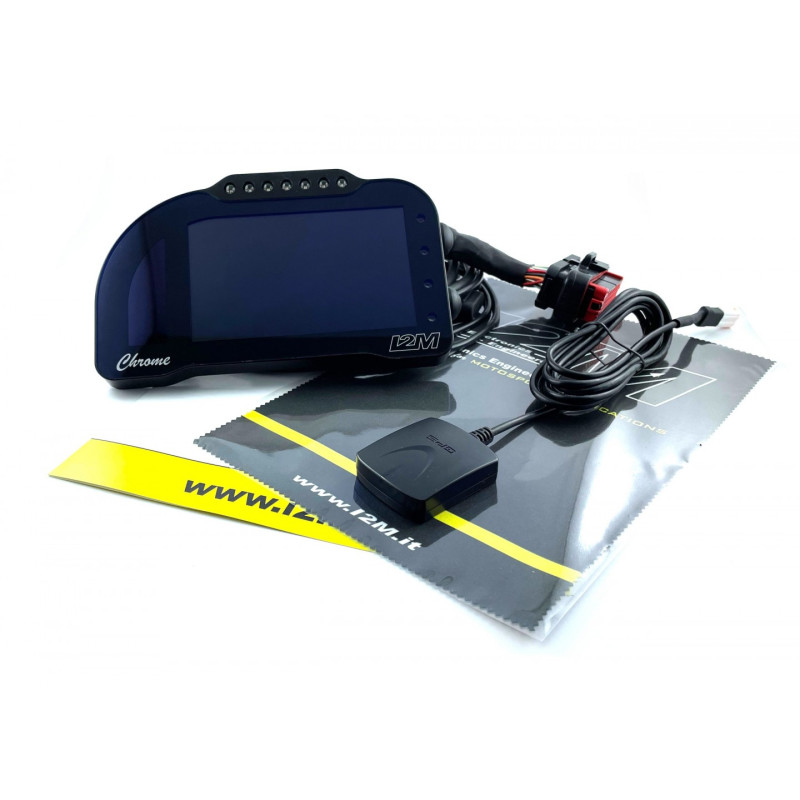

The Chrome PLUS 2 is supplied in a package containing:

• Chrome PLUS2
• GPS receiver
• Main wiring
• Cleaning cloth

To be able to install it, you only need to choose the plug & play adapter for your motorcycle.The lambda sensor and its connection strap are sold separately so that they can only be purchased by those interested in reading Lambda values.

Compared to the previous generation, the new Chrome PLUS2 features a single front plexiglass that protects the TFT display even better.The CNC machined aluminum case is now even thinner by providing housing for a new single IP67 rated rear connector.The appearance anticipates only some of the differences with previous models such as:

• Complete configurability of all motorcycle parameters even with totally custom Can Bus
• 128 additional can bus acquisition channels, each with sampling up to 500Hz
• 11 fully configurable RGB LEDs
• Configurable mechanical pages
• Integrated Bluetooth BLE antenna
• New simplified adaptors
• Recovery System

The Chrome PLUS2 shares the new ultra slim design with the PRO2 model. With a body thickness of only 15mm it becomes easy to install on all supersport bikes while the IP67 connector makes it unnecessary to use the previous cable protection shells.The front dimensions are the same as the previous Chrome, confirming a design that has made this dashboard easily distinguishable on all racing fields.

Downloads:

Danas Software

Danas Manual

Chrome User Manual

Additional information and updates
