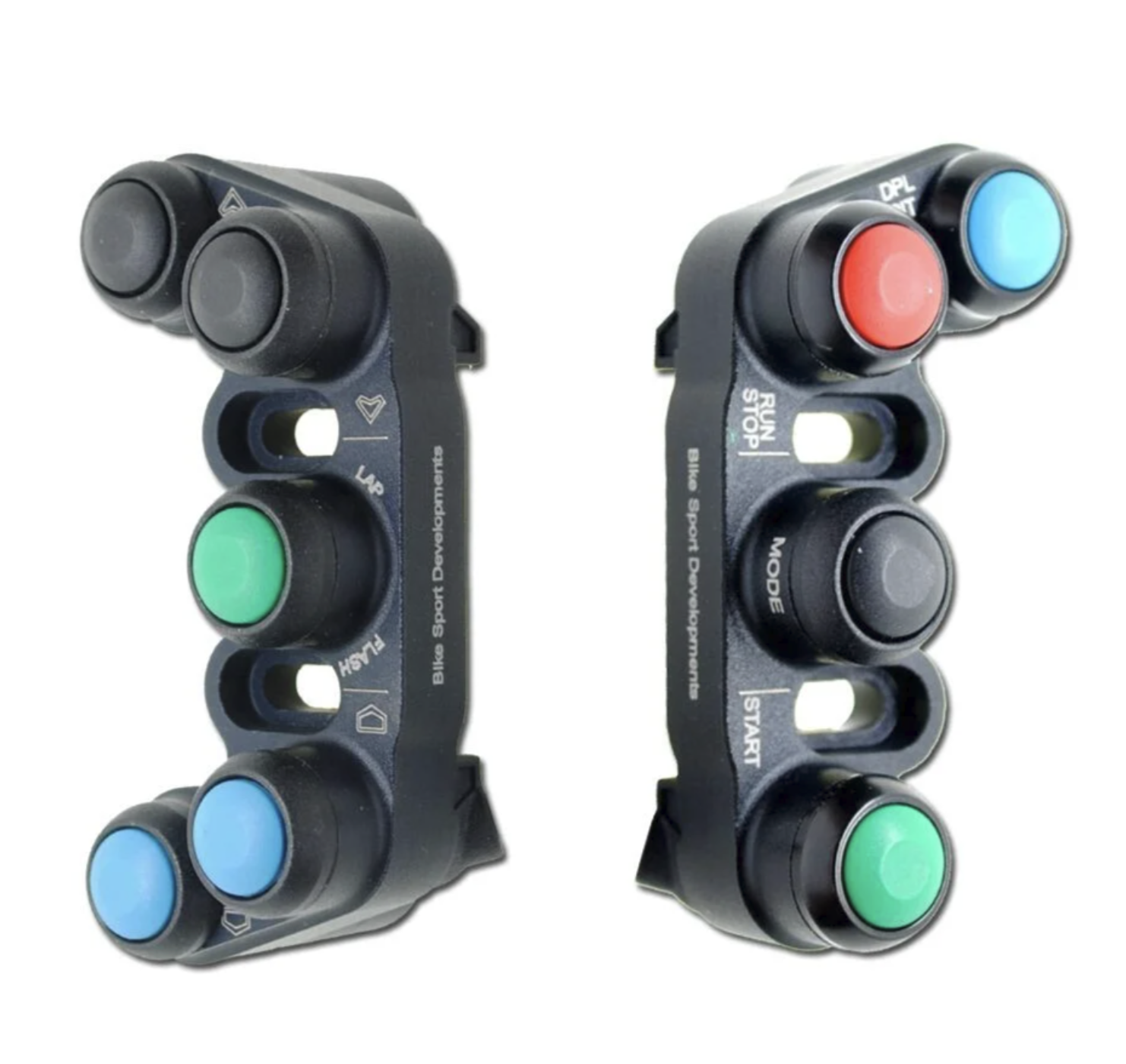

Bike Sport Development Left & Right Multifunction Kit
Ducati V4 / V4S (2025-)

FEATURES:

• Number of switch functions : 11
• Position : Right and Left Side
• 7 function left switch
• 4 function right switch
• Data interface LIN module
• All wiring to enable 'plug n play'

FUNCTIONS:

Functions  Left:

• Enter
• Up
• Down
• Select
• Plus +
• Minus -
• Lap set

Functions  Right:

• DPL / PIT
• Stop/Run
• MODE (this function is located on the left switch on the standard bike set)
• Start

Mounting:

Brake side : These switches mount directly onto the brake master cylinder using the two original clamp screws and a new dedicated clamp. Or via a slim 22mm clamp BR-G directly onto the handlebar

The clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard bike, but you are free to choose an alternative clamp at the time of ordering at no extra cost.

Use the 'pull down' menus above to select alternative clamps

We have brake clamps for:

• BR-A    32mm in-line bolt spacing
• BR-B    30mm offset bolt spacing - Brembo XR , GP
• BR-N    32mm in-line with a left offset for short brake levers Nissin / Brembo RC, RCS, Costa Corta
• BR-F    30mm in-line as found on Accosato / Hel components
• BR-J     32mm offset bolts spacing as found on Beringer components
• BR-G    Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)

Unless otherwise specified we will supply the BR-A clamp for the brake and the BR-G clamp for the clutch side. Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket brakes.

Clutch side : These switches mount directly onto the clutch master cylinder using the two original clamp screws and a new dedicated clamp. Or for the left via a slim 22mm clamp BR-G directly onto the handlebar

The clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard bike, but you are free to choose an alternative clamp at the time of ordering at no extra cost.

Use the 'pull down' menus above to select alternative clamps

We have clutch clamps for:

• BR-G   22mm generic bar clamp
• CL-A    32mm in-line bolt spacing
• CL-B    30mm offset bolt spacing - Brembo XR , GP
• CL-F    30mm in-line as found on Accosato and Hel components
• CL-K    36mm in-line spacing as found on Kawasaki
• CL-J    32mm offset bolts spacing as found on Beringer components

• Unless otherwise specified we will supply the CL-A clamp for this application.

  Clamps may be bought separately should you change the clutch at a future time, there is no need to replace the switch assembly

  Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket clutch parts, or thumb brakes.

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our speciality, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone
• If you are not sure, call us for advice on 0044 (0)1327 263942 - UK
