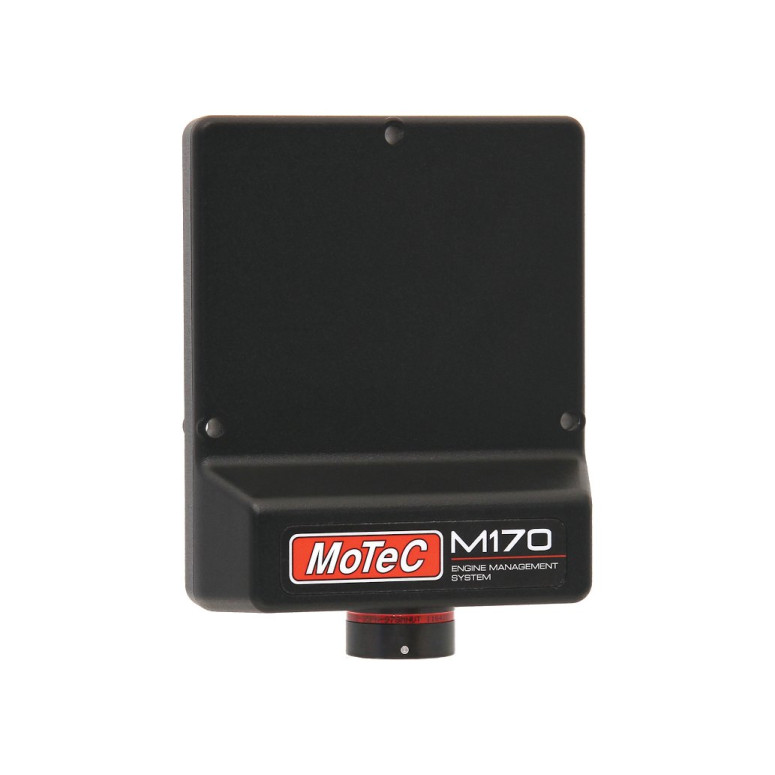

Motec M170 ECU

NOTE: This is not a plug & play ECU. It is a professional-grade control system that will require special support in most cases to set up and use properly. The ECU will also require a firmware package, which is not included in the base cost of the ECU. Use the dropdown box above to select your firmware package and additional features.

MoTeC’s M170 ECU begins a new era in engine control. With double the logging size of the M130 and a single durable autosport connector, the M170’s unique technology redefines the meaning of customisation, delivering total control without compromise, and highly advanced security strategies make these ECUs ideal for both category managed and unrestricted applications.

Features

• Small and light in robust magnesium enclosure

• Port injection injector type

• Large logging memory

• Latest generation high performance processor

• Customisable configuration (see separate section)

• Customisable firmware / functionality

• Suitable for modern engines with DBW, Cam control and a CAN bus.

• Advanced logging features, high speed, multiple logs (with access logins), I/O expansion, Pro Analysis

• Flexible tuning software

• Robust and comprehensive security features (see separate section)

• Programmable injector drive characteristics

• Programmable digital input system for Ref/Sync, wheel speeds etc.

• Programmable trigger levels, diagnostics

• All Low Side and Half Bridge outputs have PWM capability

Upgrades

• Various Logging Options

• Configuration

• Locked Configuration

• Standard Configuration

• Open Configuration

Software

• Microsoft Windows™ based software

• PC Tuning software ‘Tune’ - Used to tune fuel and ignition, set up sensors, outputs and available functions

• PC Software ‘Build’- Used to create a custom software package with user specific functions
