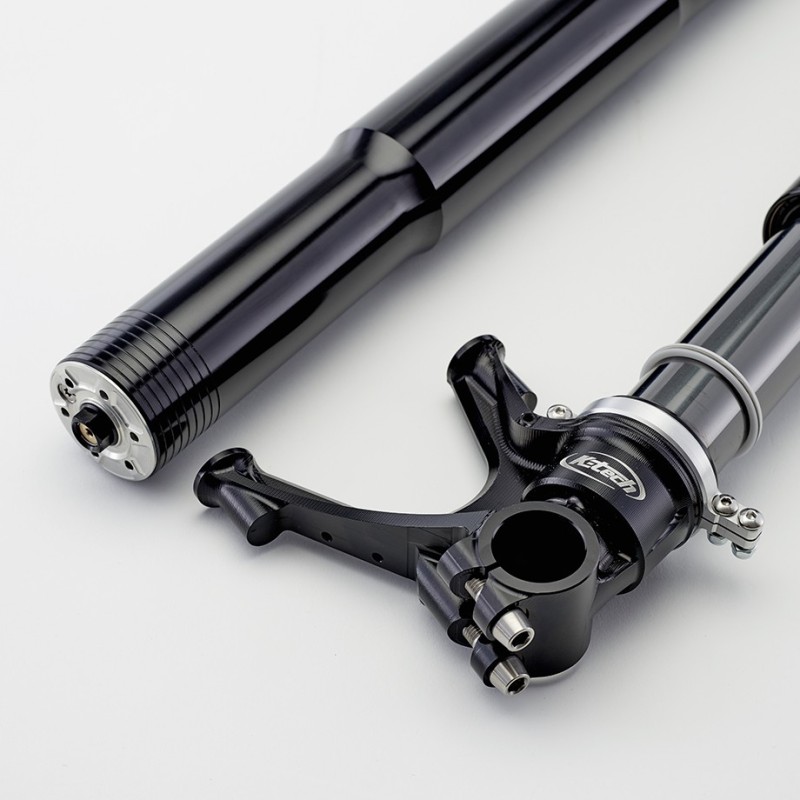

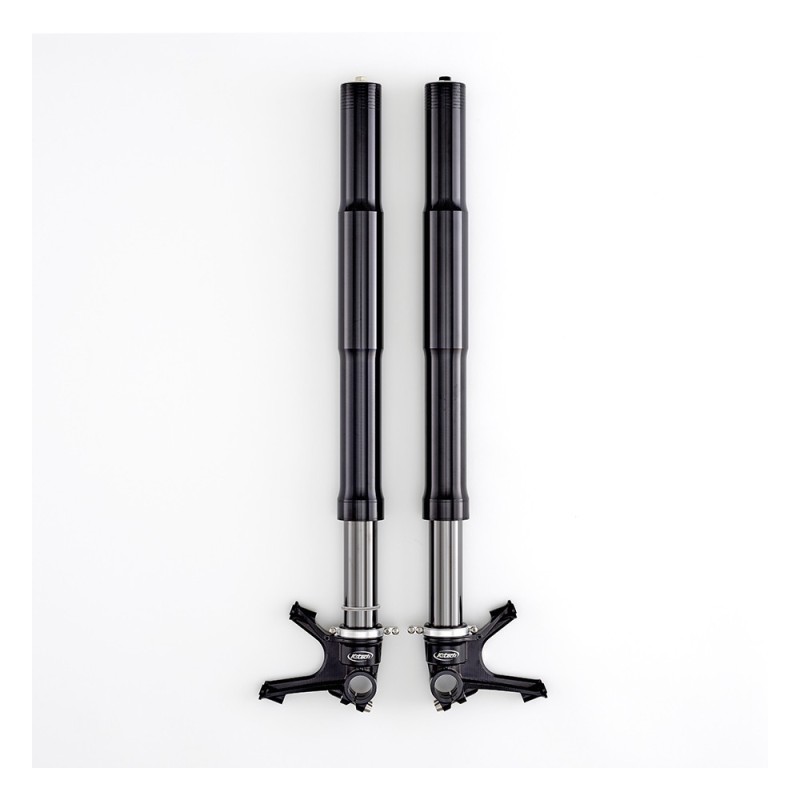

K-Tech Suspension - Racing Superbike Front Fork KTR-4

The KTR-4 front forks use patented championship-winning DDS (Direct Damping System) technology, which has been designed to compete at the highest levels of motorcycle racing.

 The DDS pressurised damping system uses 20mm displacing pistons to create a high flow of oil through the 32mm control valves to give precise damping control.

 The patented design eliminates cavitation making the system very stable under extreme conditions.

 Damping circuits work independently to improve the dynamics and response time.

 The system is pressurised by spring force, keeping it stable under all working temperatures.

 These forks have been used to win and podium by racers worldwide including MotoAmerica Superbike, British Superbike Series and The Isle of Man TT.

52/58mm fork diameters. Available in 750 or 770mm length.

Not a direct OEM replacement.  Aftermarket triple clamps, axle, fender mounts, and caliper brackets may be required.

The new KTR4 forks benefit from having 0.5kg less un-sprung mass than the previous KTR-3 design and 10% more flex. Using the highest quality materials, processes and treatments with stringent design tolerances the KTR-4 front forks are now 1kg lighter than its predecessors and have been designed for optimum performance and weight, making it a serious option for any level of rider or race team.

Lengths available:- 750mm, 770mm
Stroke:- 130mm
30 clicks of compression adjustment
30 clicks of rebound adjustment
18mm of preload adjustment
DDS technology
Upper tube material 7075-T6
Superfinished DLC coated lower tubes
Axle brackets material 7075-T6 for maximum strength and durability
Suitable for 290-320mm disc diameters with 108mm centre caliper's
Supplied with three pairs of springs and the necessary tools needed to change them
Wide range of spring rates available
Used at the highest levels of racing including British Superbike and Isle of Man TT
