MoTeC Kawasaki ZX-10R / ZX-10RR Plug & Play Superbike Electronics Package

     0 reviews  |  Write a review
Brands MoTeC
Product Code: MoTeC-ZX-10RR-SBK
Availability: Pre-Order
$15,105.00

Available Options

Our comprehensive professional racing Superbike electronics package for the Kawasaki ZX-10R / RR. This system brings the Kawaski's power, and on-track performance level to it's zenith, by means of advanced electronics strategies, motorsports-grade wiring, hardware and sesnors. Also included are application-designed mounting hardware and saddles for the ECU, IMU, Battery and Dash. This all amounts to a puropose-engineered professional solution, specific to the ZX-10RR, that will last many, many years of professional racing use.

As an added benefit, this system is broken down into sub looms with autosport connectors throughout, for massively improved serviceability, robustness, water proof connections and a modular design. We will provide free base support, tuning and setup for each customer who purchases this package.

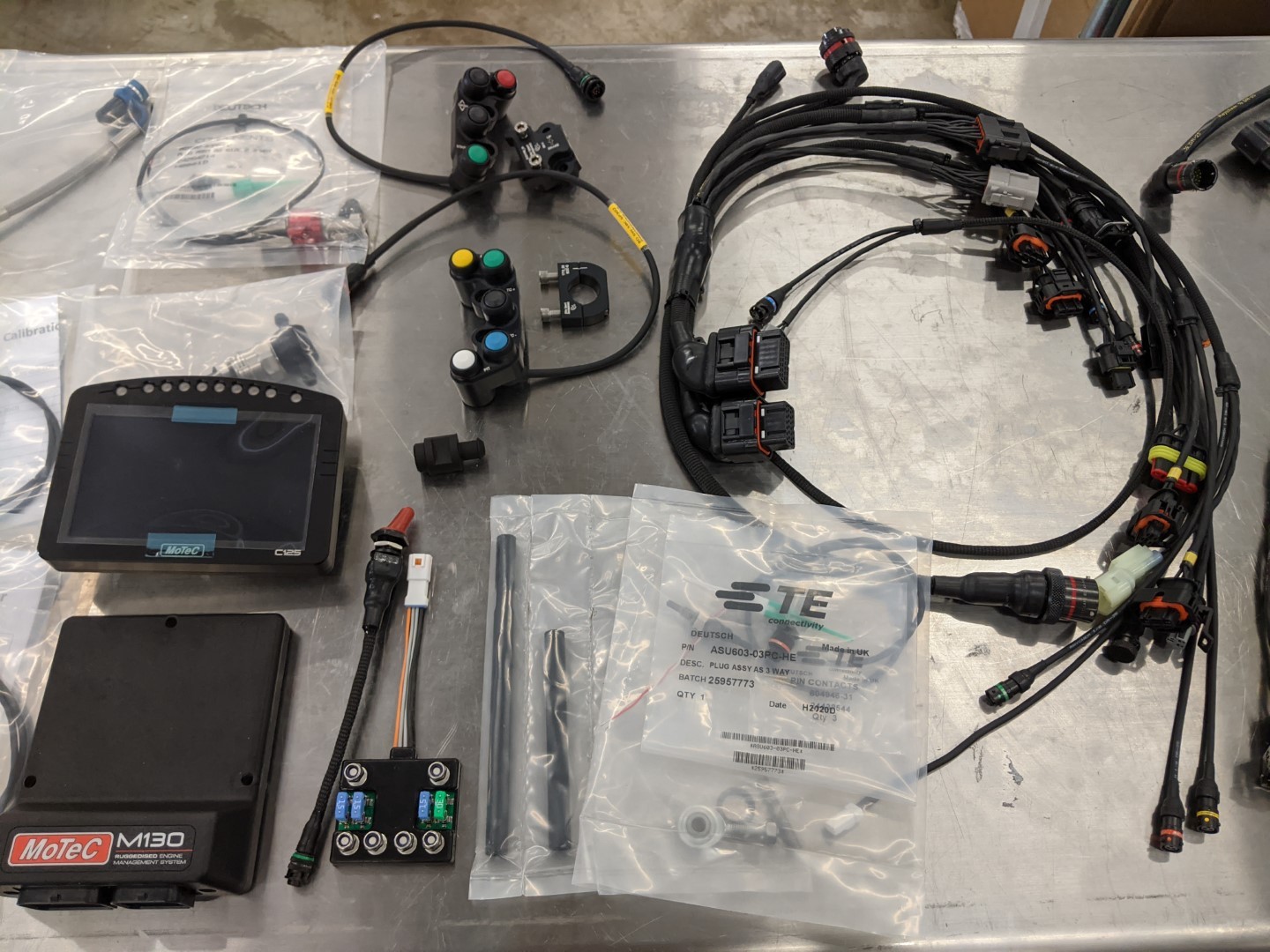

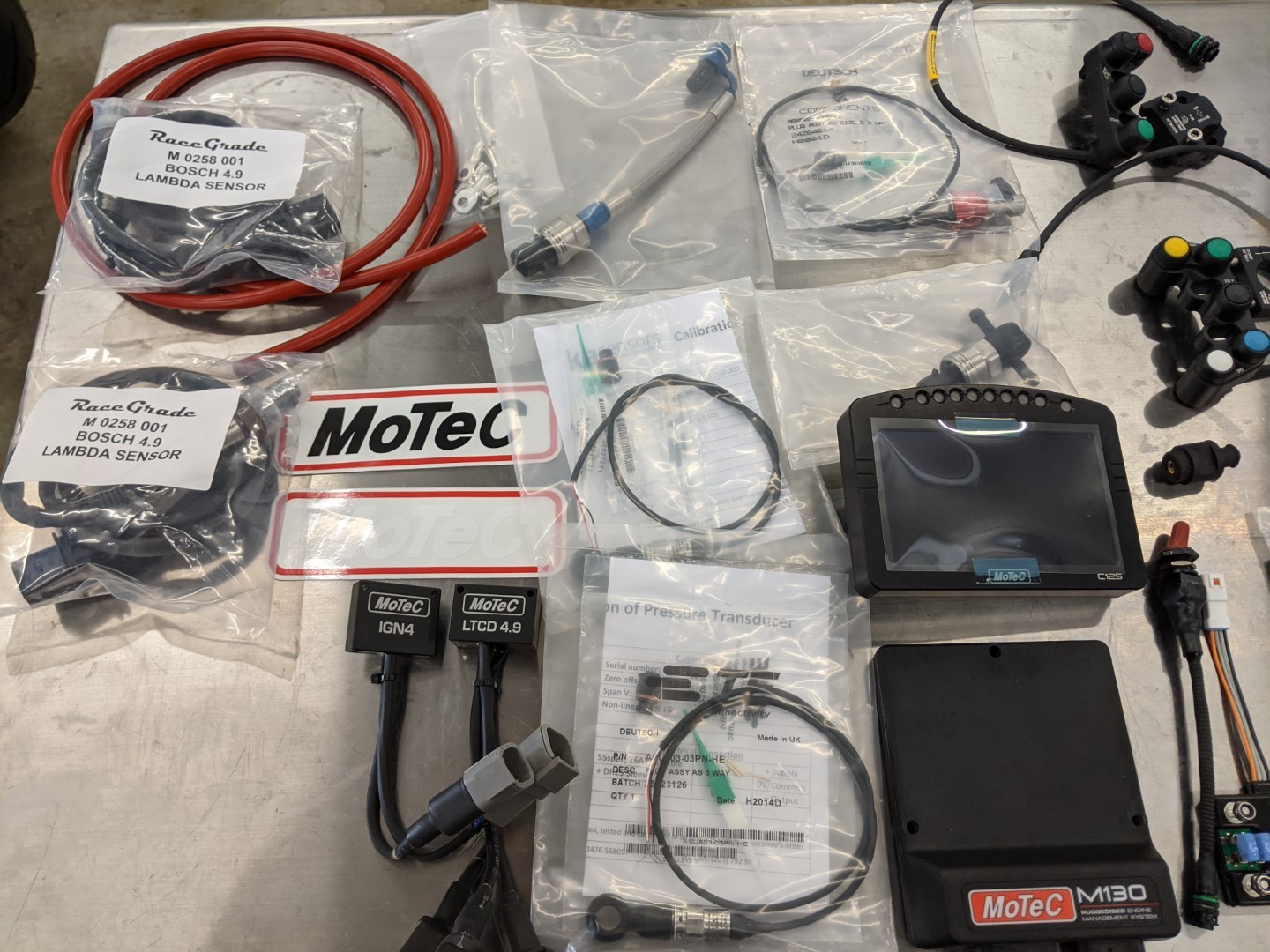

Included in each kit (with Sensor & Compatibility Package):

MoTeC M130 ECU (M170 available as well)

MoTeC C125 Dash

MoTeC LTC Lambda Sensor Kit

MoTeC IGN-4 Ignition Drivers

MoTeC L10 GPS Unit

Professional Motorsports Multi-Part Wiring Harnes Set With Autosport and OEM Connectors

Professional Racing IMU

Yamaha YZF-R1 Superbike Firmware

5 Button Left Handlebar Switch Assembly

4 Button Right Handlebar Switch Assembly

2x 10 Bar Pressure Sensors for Oil & Fuel*

2x 50 Bar Pressure Sensors for Brakes Front & Rear*

1000N Load Cell Shift Sensor

100mm Slim Shock Potentiometer*

150mm or 175mm Slim Fork Potentiometer*

Ignition Switch - IP67 2 pole - Sealed - 150mm

RFB-B7152-PDM, Power Distribution Module

Custom Battery / Starter Cables

Various supporting hardware and wiring components to allow for complete installation

*Included only with Sensor & Compatibility Package



Firmware Information:

The firmware included in this package is a full professional superbike grade package, with a host of tuning features and fully tuneable open advanced strategies, including:

Advanced Engine Braking Control With Open and Closed Loop Control For Each Cylinder Bank

Advanced Traction Control Strategies

Advanced Torque Control, Tuneable Per Gear

Advanced Wheelie Control Strategy

Launch Control Strategy

Anti Spin Strategy

High Resolution Fuel Mapping With Per Cylinder Tables

Closed Loop Fuel Control

Track Position or "Sector" Control of Torque, Traction Control, Engine Braking and More!

Fully Tuneable Upshift / Downshift Control "Quickshift and Auto Blip"

Massive Sensor Support For Most Motorsports Sensors

Rev Limit Control Per Gear

Adjustable Ratios For Transmission Gears

Pit Limit

Much, much more!



MotoAmerica Superbike-Spec Firmware is also available.

  • 2021-23 Kawasaki ZX-10R / ZX-10RR
  • 2016-2020 Kawasaki Ninja ZX-10R / ZX-10RR
