Brembo 15mm RCS Radial Brake Master Cylinder - Short Lever

     0 reviews  |  Write a review
Brands Brembo Brakes
Product Code: 110.A263.20
Availability: Typically ships in 2-3 days.
$290.00

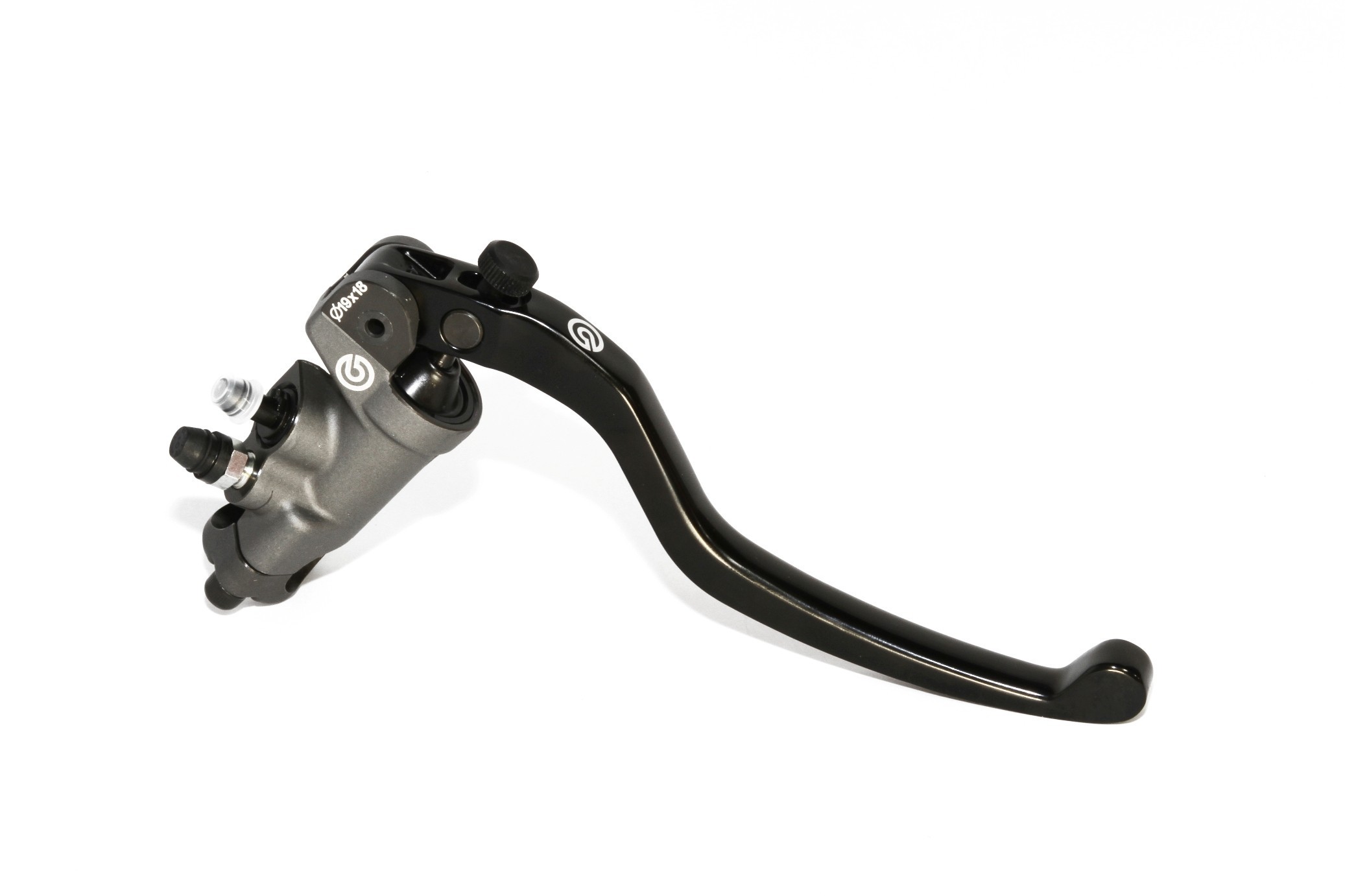

Images are of RCS 19mm and are for reference at this time.

Features:

- Includes micro brake light switch.
- 15mm bore size.
- Lever span adjustable.
- Remote reservoir design (if you do not have a brembo reservoir you will need to fit one as well as reservoir pipe and pipe clips).
- Integral bleed nipple for rapid bleeding after assembly/service
- Handlebar size 22mm.
- Please be aware that if the master cylinder you are replacing is not Brembo then you will need to replace the banjo bolt as these use a M10*1.00 short thread

Please select your optional add ons using the drop down boxes above.

Superbike Unlimited configuration includes a CNC MotoGP-style low drag lever, titanium lever bolt and Brembo's racing style clamp.


Brembo is still a step forward compared to the competition, with its new adjustable derivation radial brake master cylinder, developed through their experience of racing at the highest level. The major innovation is the new patented device RCS (Ratio Click System) that allows for easy adjustment of the lever ratio with the simple rotation of an eccentric adjuster, placed on the front of the lever.

RCS system function: switchable between 18mm and 20mm ratios, with the RCS-Ratio Click System you can change from one configuration to another, allowing for different riding characteristics. Red spot on the eccentric adjuster means 18mm position while black spot identifies 20mm position. This solution makes it possible to adapt to different braking conditions, dry or wet, more or less grip, for use on the track or on the street. It is virtually is like having two different master cylinders in one.

The master cylinder body is forged aluminium then subsequently CNC worked by lightening mill before finally the surface is hard anodised. The new radial brake cylinder reflects the geometry, dimensions and features of that used in MotoGP.

Moto GP floating piston: 19mm diameter bore with high-level components including piston, seals and push rod which are inherited directly from the Superbike and MotoGP championship equipment, meaning reduced manufacturing tolerances and excellent smoothness.

The brake lever itself is made up of two main components allowing for a fold up design, greatly reducing the risk of the lever snapping in the event of a crash (this is another patented system that only allows the lever to fold on impact, eliminating the possibility of the lever accidentally folding during use, a great safety feature).

Micro-switch: another fantastic feature is a special housing to accept a micro brake light switch making this radial master cylinder suitable for road use, without the need for banjo bolt pressure switches.

Lever contrast springs: high load springs to guarantee the constant contact between the eccentric adjuster and the push rod, resulting in safety and longer life of various components.

Additional Information:

This Italian product is adorned with a graphic that shows beautifully the Italian tricolour at the same time providing immediate recognisability of the unit. All this ensured with Brembo quality.


  • 2009-2014 Aprilia RSV4
  • 2019-2020 Aprilia RSV4
  • 2015-2018 Aprilia RSV4
  • 2014-2019 BMW R nineT
  • 2019-2020 BMW S1000RR
  • 2015-2018 BMW S1000RR
  • 2009-2014 BMW S1000RR
  • 2002-2007 Buell XB9R / XB12R Firebolt
  • 2007-2009 Ducati 1098
  • 2009-2014 Ducati 1198
  • 2008-2013 Ducati 848
  • 2012-2014 Ducati Panigale 1199
  • 2015-2018 Ducati Panigale 1299
  • 2013-2015 Ducati Panigale 899
  • 2016-2018 Ducati Panigale 959
  • 2018-2020 Ducati Panigale V4
  • 2012-2016 Honda CBR1000RR
  • 2017-19 Honda CBR1000RR
  • 2004-2005 Honda CBR1000RR
  • 2006-2007 Honda CBR1000RR
  • 2008-2011 Honda CBR1000RR
  • 2003-2004 Honda CBR600RR
  • 2007-2008 Honda CBR600RR
  • 2009-2020 Honda CBR600RR
  • 2005-2006 Honda CBR600RR
  • 2014-2015 Honda Grom
  • 2016-2019 Honda Grom SF
  • 2019+ Honda Monkey 125
  • 2000-2006 Honda RC51 SP1/SP2
  • 2019-2020 Husqvarna 701 Supermoto
  • 2015-2018 Kawasaki Ninja H2 / SX / SE
  • 2008-2012 Kawasaki Ninja 250R
  • 1988-2007 Kawasaki Ninja 250
  • 2013-2017 Kawasaki Ninja 300R
  • 2018-2020 Kawasaki Ninja 400
  • 2006-2008 Kawasaki Ninja 650R
  • 2009-2011 Kawasaki Ninja 650R
  • 2017-2019 Kawasaki Ninja 650
  • 2012-2016 Kawasaki Ninja 650
  • 2017-2018 Kawasaki Z125 Pro
  • 2006-2007 Kawasaki Ninja ZX-10R
  • 2008-2010 Kawasaki Ninja ZX-10R
  • 2011-2015 Kawasaki Ninja ZX-10R
  • 2004-2005 Kawasaki Ninja ZX-10R
  • 2016-2020 Kawasaki Ninja ZX-10R / ZX-10RR
  • 2012-2018 Kawasaki Ninja ZX-14R
  • 2006-2011 Kawasaki Ninja ZX-14
  • 2013-2018 Kawasaki Ninja ZX-6R
  • 2007-2008 Kawasaki Ninja ZX-6R
  • 2019-2020 Kawasaki Ninja ZX-6R
  • 2009-2012 Kawasaki Ninja ZX-6R
  • 2005-2006 Kawasaki Ninja ZX-6R
  • 2019-2020 KTM 690 SMC R
  • 2013-2019 KTM Duke 390
  • 2014-2019 KTM RC390
  • 2008-2016 KTM RC8
  • 2012-2018 MV Agusta Brutale 675
  • 2015-2018 MV Agusta Brutale 800
  • 2011-2018 MV Agusta F3 675
  • 2011-2018 MV Agusta F3 800
  • 1999-2004 MV Agusta F4 750
  • All Offroad, Supermoto, Enduro or Motocross
  • 2012-2016 Suzuki GSX-R1000
  • 2003-2004 Suzuki GSX-R1000
  • 2009-2012 Suzuki GSX-R1000
  • 2017-2020 Suzuki GSX-R1000 / 1000R
  • 2001-2002 Suzuki GSX-R1000
  • 2005-2006 Suzuki GSX-R1000
  • 2007-2008 Suzuki GSX-R1000
  • 2008-2010 Suzuki GSX-R600
  • 2011-2020 Suzuki GSX-R600
  • 2006-2007 Suzuki GSX-R600
  • 2004-2005 Suzuki GSX-R600
  • 2001-2003 Suzuki GSX-R600
  • 2006-2007 Suzuki GSX-R750
  • 2008-2010 Suzuki GSX-R750
  • 2011-2020 Suzuki GSX-R750
  • 2004-2005 Suzuki GSX-R750
  • 1999-2007 Suzuki Hayabusa
  • 2008-2018 Suzuki Hayabusa
  • 1999-2002 Suzuki SV650 / S
  • 2017-2019 Suzuki SV650
  • 2003-2012 Suzuki SV650 / S
  • 2006-2012 Triumph Daytona 675 / 675R
  • 2013-2018 Triumph Daytona 675 / 675R
  • 2011-2015 Triumph Speed Triple
  • 2016-2018 Triumph Speed Triple
  • 2013-2016 Triumph Street Triple 675
  • 2007-2012 Triumph Street Triple 675
  • 2017-2018 Triumph Street Triple 765
  • 2014-2019 Yamaha FZ-07 / MT07
  • 2013-2016 Yamaha FZ-09 / MT-09
  • 2017-2019 Yamaha FZ-09 / MT-09
  • 2016-2020 Yamaha FZ-10 / MT-10
  • 2006-2012 Yamaha FZ1
  • 2016-2019 Yamaha XSR700
  • 2016-2019 Yamaha XSR900
  • 2015-2019 Yamaha YZF-R1
  • 2000-2001 Yamaha YZF-R1
  • 2020 Yamaha YZF-R1
  • 2002-2003 Yamaha YZF-R1
  • 2004-2006 Yamaha YZF-R1
  • 2007-2008 Yamaha YZF-R1
  • 2009-2014 Yamaha YZF-R1
  • 1998-1999 Yamaha YZF-R1
  • 2015-2020 Yamaha YZF-R3
  • 1998-2002 Yamaha YZF-R6
  • 2006-2007 Yamaha YZF-R6
  • 2008-2016 Yamaha YZF-R6
  • 2017-2020 Yamaha YZF-R6
  • 2003-2005 Yamaha YZF-R6
  • 2000 Zonkador SuperGP
