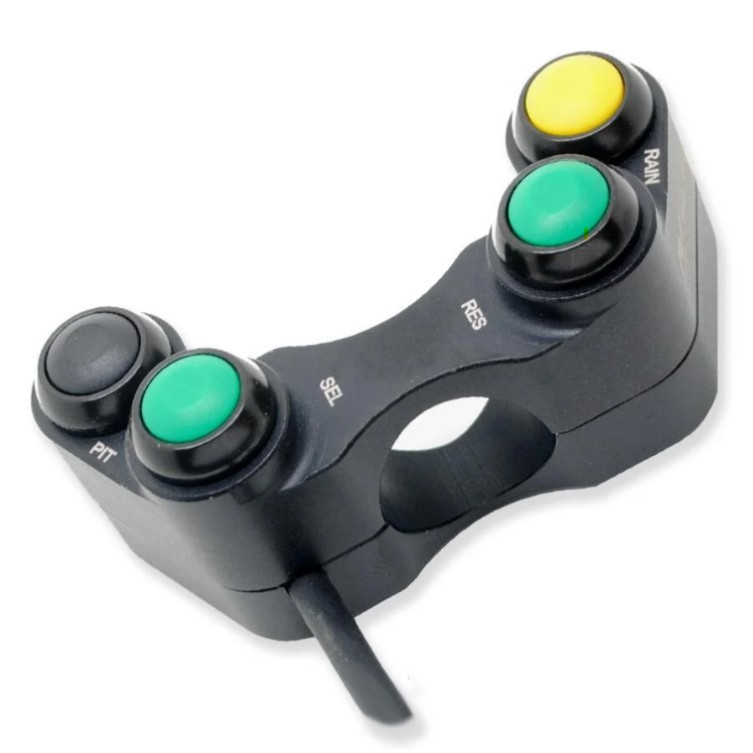

Bike Sport Development 4-Function Switch (Rain/Res/Select/Pit)
Yamaha R7 (2022-2023)

These traditionally style race switches mount directly onto the handlebar.

This switch is is a direct 'plug n play' replacement for the standard switch assembly**

** Pit speed limiter is only possible via a re-flashed ECU, this product only provides the switch and 2 wires for you to connect.

** Rain switch is provided by 2 wires for use within any suitable rain light circuit. This product only provides the switch and 2 wires for you to connect.

Clutch switch wiring is included as a separate component.


Number of switch functions : 4

Position : Left side

Road or Track : Track only

Mounting type : Clamps around the handlebar via front and rear body - 2 x M4 cap bolts

FUNCTIONS:

• Rain
• Select
• Restart
• Pit Speed Limit

These 'Type c' switches normally mount onto the clutch post or master cylinder, but Yamaha only have one clutch post bolt as standard. For this reason the default clamp will be the BR-G generic clamp

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving

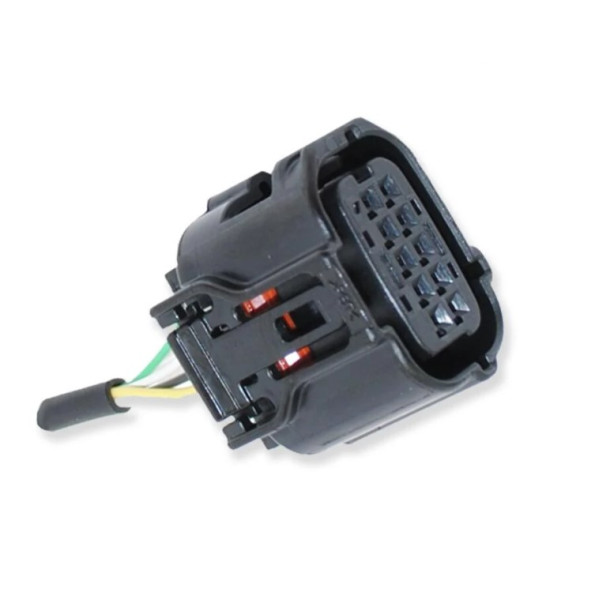

• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our speciality, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone

CLICK HERE FOR DATASHEET
