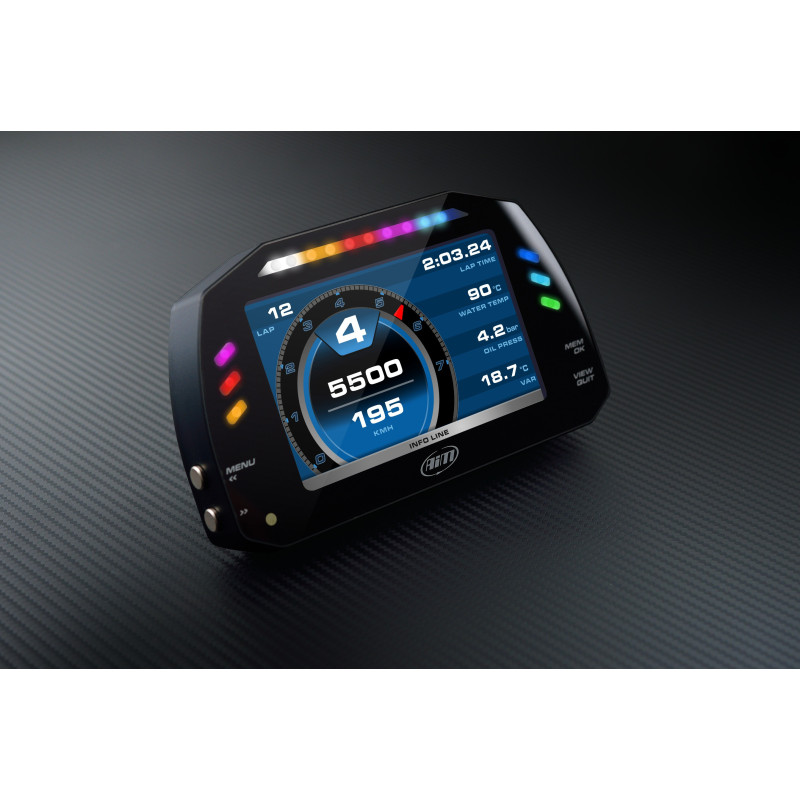

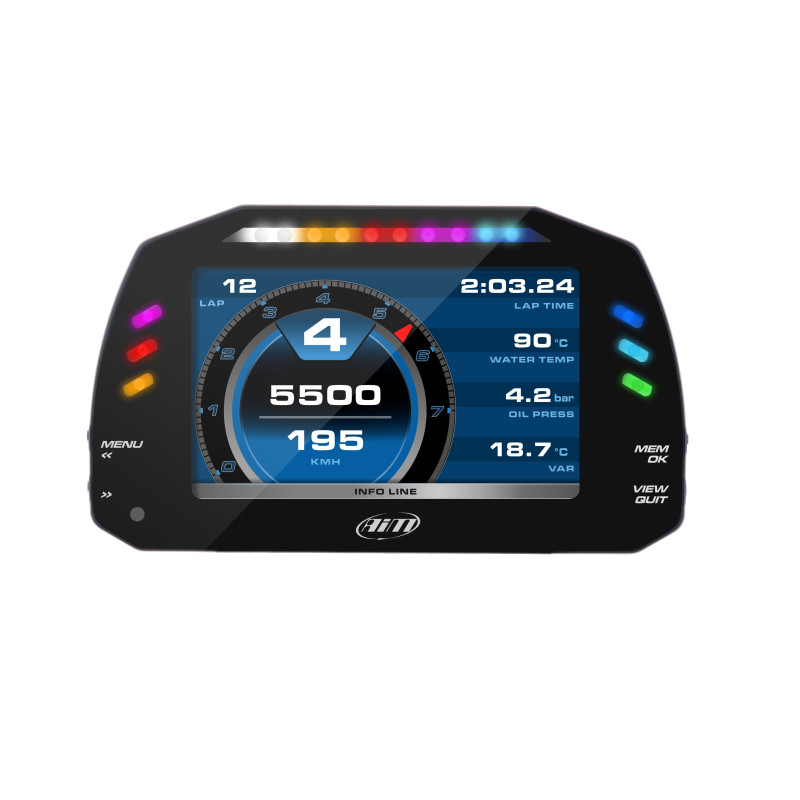

AIM Sports MXS Color Motorcycle Dash Data Logger - Honda, Kawasaki, Suzuki, Yamaha, Ducati, BMW, Aprilia

This dash offers a professional-quality logging experience with all
ECU channel inputs, an included GPS input and a vast amount of data
from your motorcycle and the unit itself. It also allows additional
channels to be logged, such as suspension potentiometers and brake
pressure. The full color TFT dash is fully customizable with an array
of screen formats and configurations.

MXS is the new AiM dashlogger designed to acquire and display data
coming from your ECU, the internal accelerometer and gyro, as well as
from the GPS08 Module included in the kit, analog/digital inputs and
predefined math channels.

Performance and data acquired can also be incremented adding up to
eight expansion modules. Its 5" display has been specifically designed
for small cockpits installation. MXS is also available in its STRADA
version, a dash for road use.

Features:

- CAN Output ; With the CAN Output you can send messages directly to
an existing CAN network in order to improve the range of vehicle
control possibilities.

- A high contrast TFT display identifies MXS at the first glance.

- An ambient light sensor keeps the backlight at optimum brightness levels.

- You can define all the custom pages you wish, choosing among a wide
library of page styles, defining which data to be shown, their end of
scale and measure units.

- Swapping between pages can be managed pushing one or two pushbuttons.

- MXS features six configurable RGB alarm LEDs: you choose the
conditions, you choose the colors.

- Select a solid alarm or flashing one - and the flashing frequency,
choose to have an accompanying text message, and set the alarm
priorities.

- Six configurable RGB alarm LEDs

- MXS features two digital outputs. The two digital outputs (Dout) are
LOW SIDE type (switch to ground): they can be configured in order to
be turned on/off depending on the value of the analog or digital
inputs. They permit to automatically run external systems, i.e. to
switch on/off additional lights, to activate/de-activate a cooling fan
or circulation pumps, etc. when a certain event happens.

- Integrated shift light array; Choose from a host of advanced
multicoloured RGB shift light patterns that can be customized to your
liking, and for each unique gear when required.
