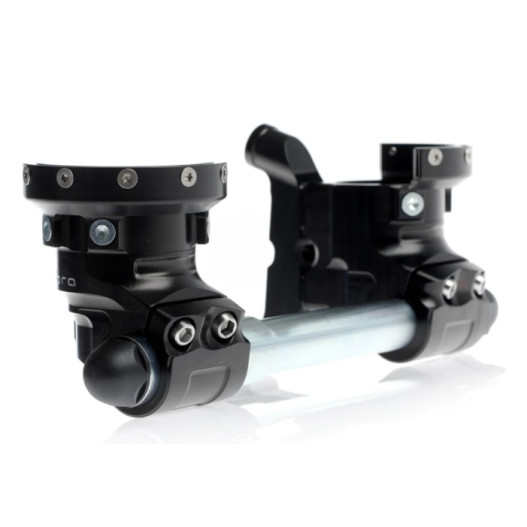

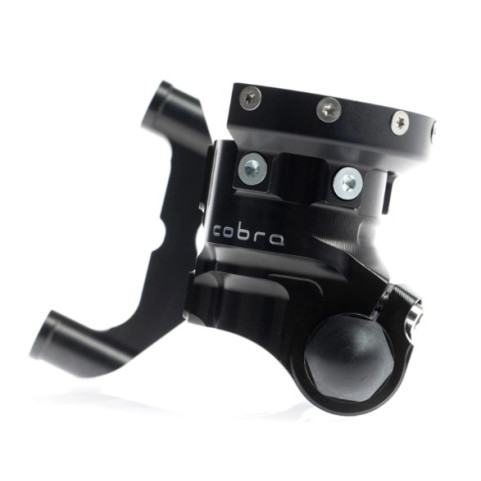

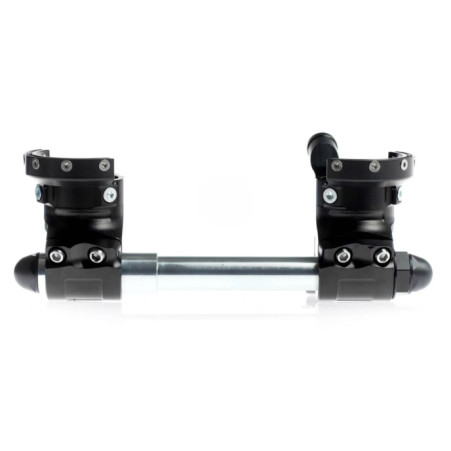

PZ5 Cobra Fork Feet for Single Disc Brake System - 108mm

PZ5 Cobra Fork Feet - 108mm
for Single Disc Brake System

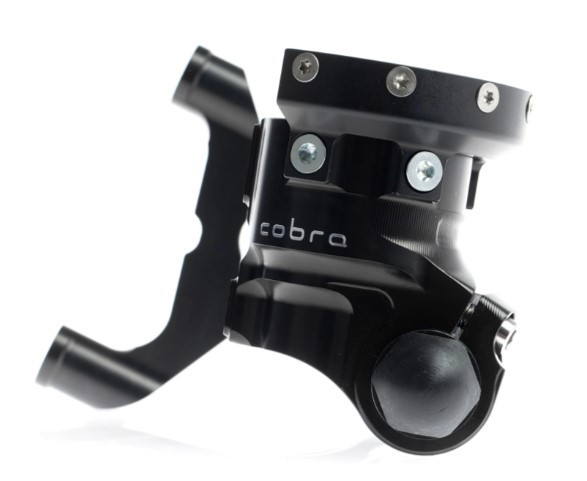

Modularity is the center of the COBRA fork feet project and it's the feature that, simply by replacing the brackets of the calipers, allows to switch from a single disc to a twin discs brake system without having to replace fork feet. It also allows you to switch from diameter 240mm discs to 260mm and vice versa.

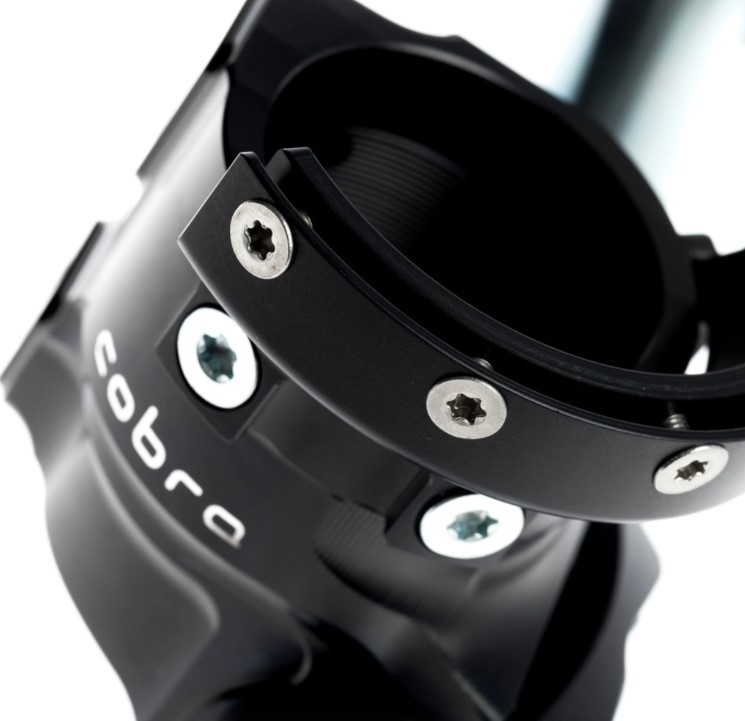

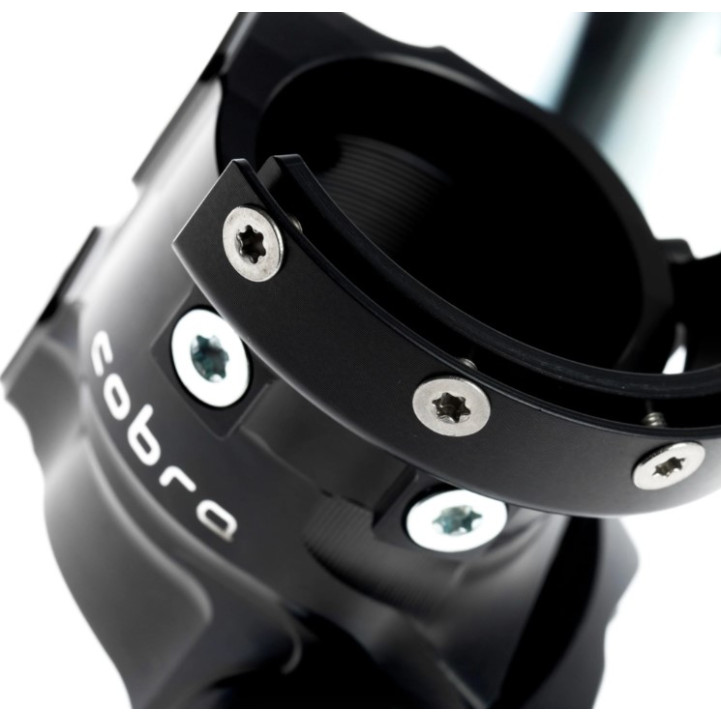

We combined all these features together with 25mm reduced offset compared to the motocross fork feet and with a fork guards fixing system that limits the eventuality of ripping when the hole-shot device is operative, or after a crash or a fall.

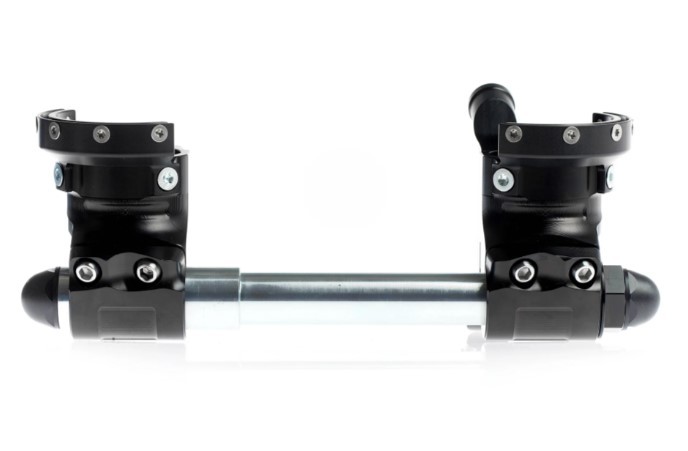

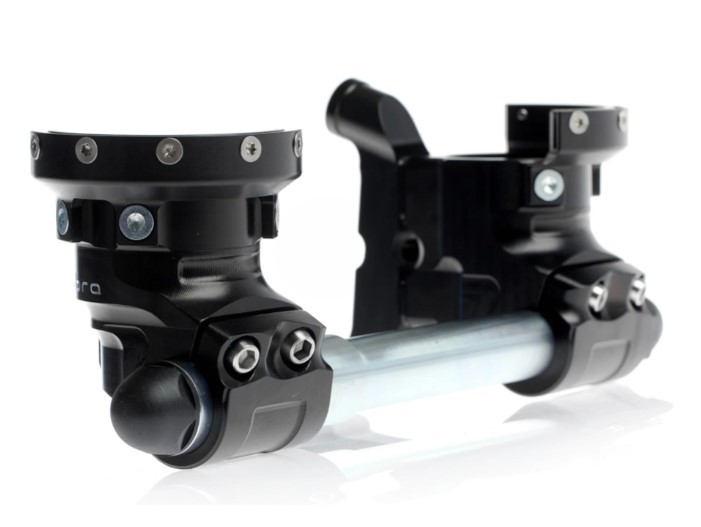

The wheel axle clamping screws aim toward the outside, this to allow an easy intervention when the front wheel must be removed.

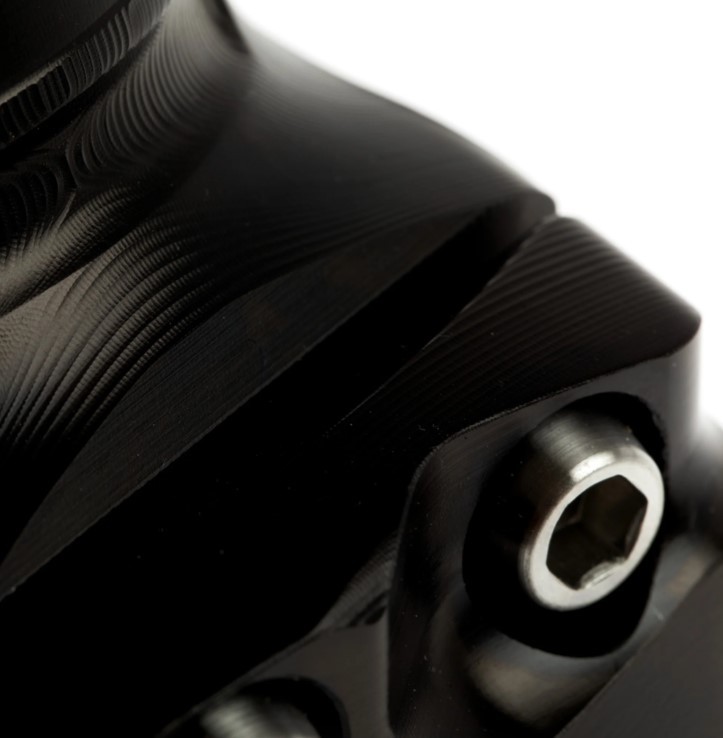

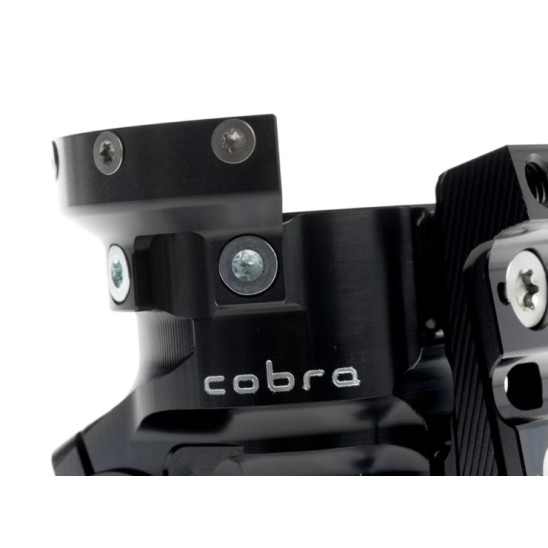

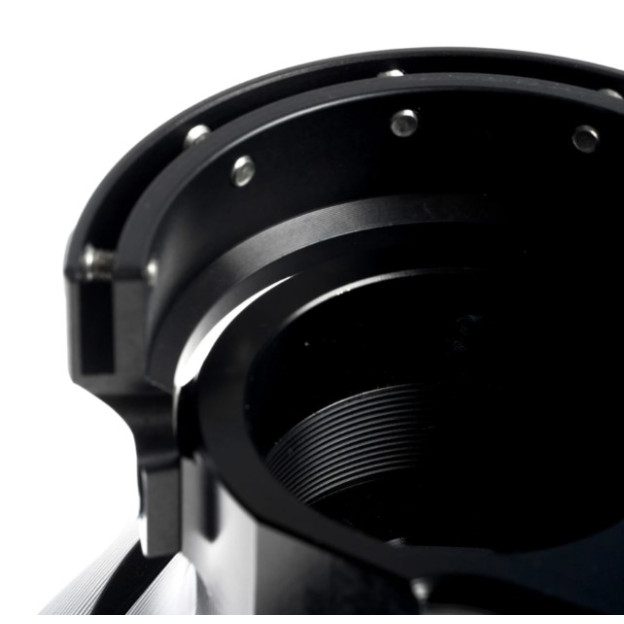

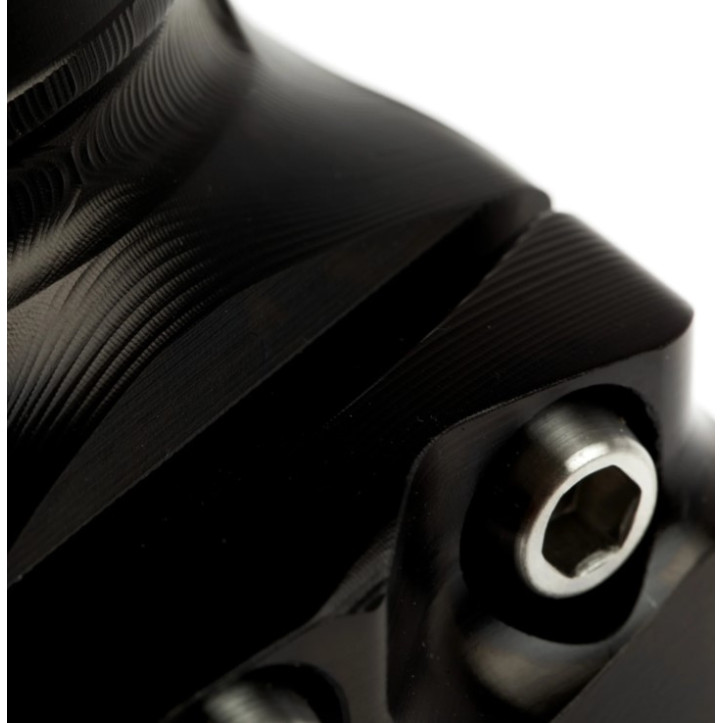

Both the fork feet and the caliper brackets are machined from solid Ergal 7075 T6 with black hard anodising as finishing.

The fork feet for 108mm caliper are available for these fork models:

• WP 48 X-act air MY2015-20 (offset 25mm)
• WP 48 X-act air MY2021 (offset 25mm)
• KYB 48 Yamaha (offset 25mm)
• Showa 49 (offset 25mm)
• Ohlins 48 (offset 25mm)
• Marzocchi 50 (offset 25mm)

PLEASE NOTE:
- the kit is designed to be used together with triple clamps 200 or 198mm wide
- the kit doesn't include the hub spacers

SPECS:

• offset 25mm
• wheel axle Ø 25mm
• clamping screws aim toward the outside
• feet and brackets machined from solid ergal 7075 T6
• black hard anodising

The Single Disc Brake system kit includes:

• 2 fork feet offset 25mm
• 1 bracket for 108mm caliper
• 2 fork guards connections
• 1 front wheel axle diameter 25mm
