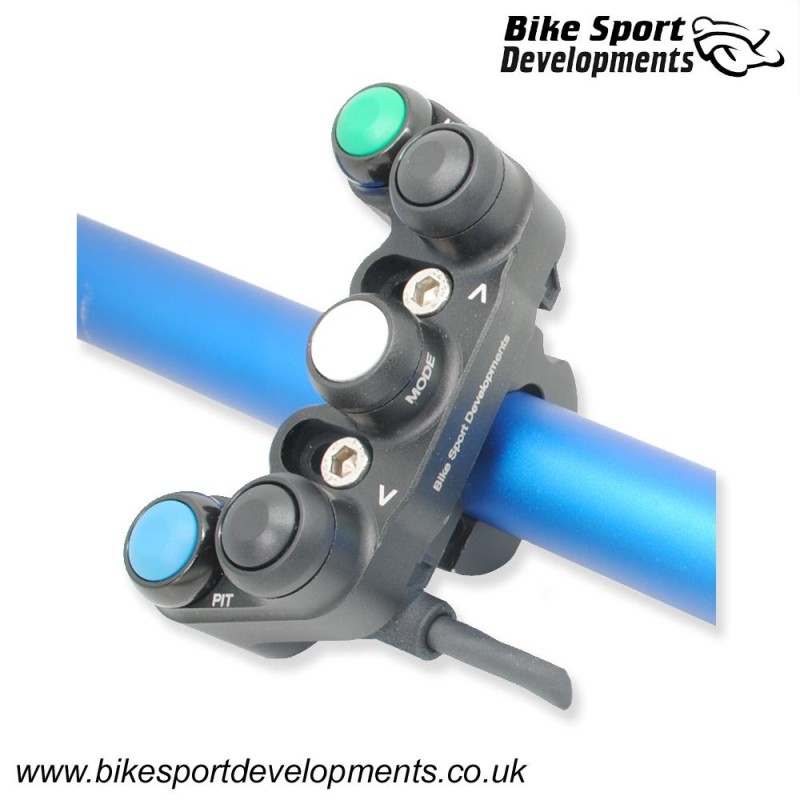

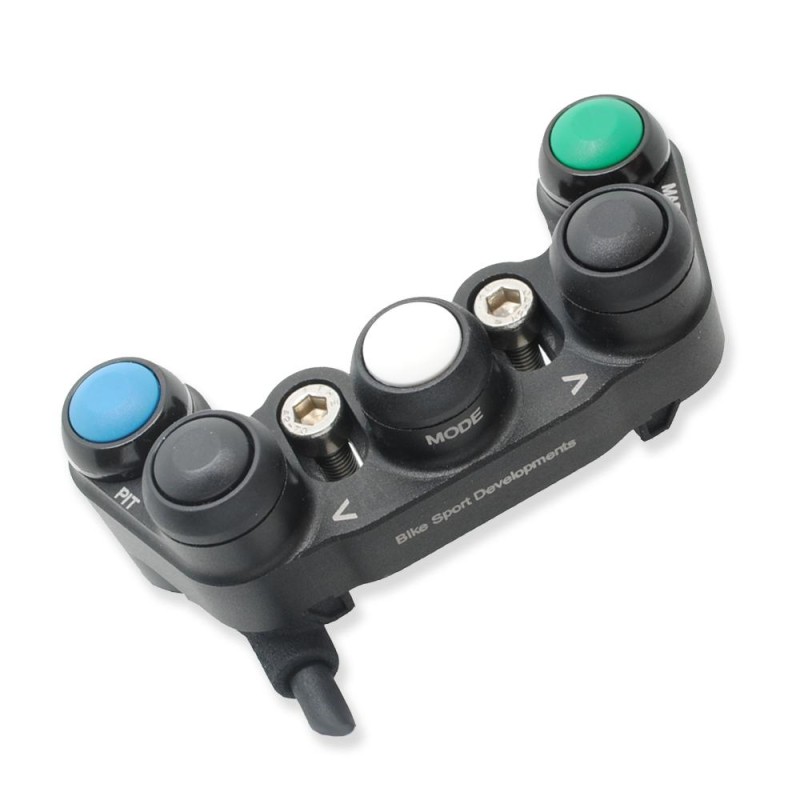

Bike Sport Developments - 5 Function Race Switch - bar clamp mount - Up/Down/Select/Map/Pit - Yamaha YZF-R1 (2015-2023)

Yamaha R1 (2015+) 5 Function Race Switch - bar clamp mount  - Up/Down/Select/Map/Pit

This switch is is a direct 'plug n play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

*Only for use with the YEC/GYTR ECU and wiring.

FUNCTIONS:

• Up
• Select
• Down
• Map
• Pit

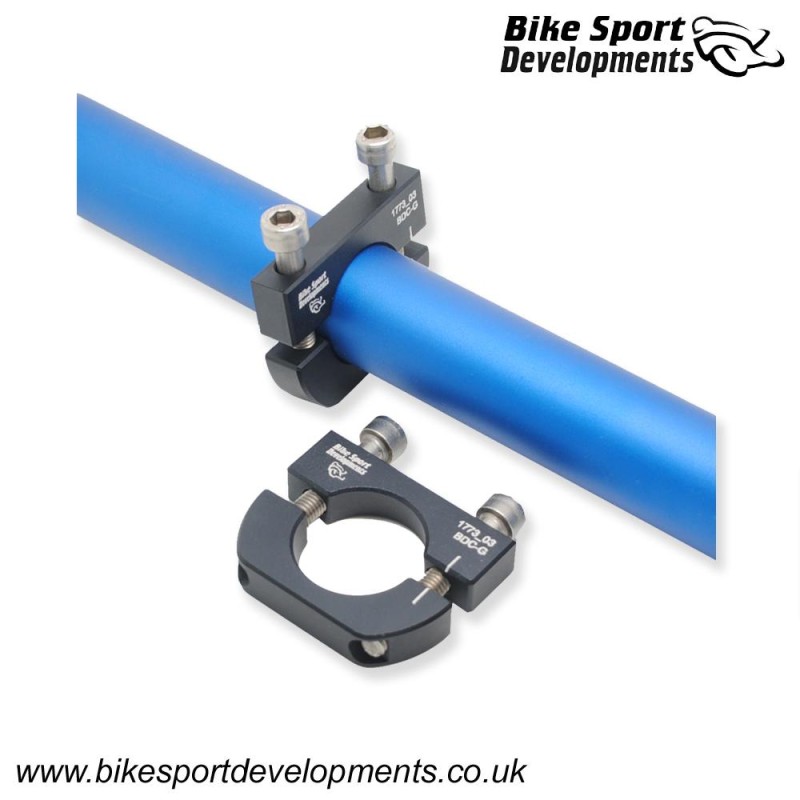

These 'Type c' switches normally mount onto the clutch post or master cylinder, but Yamaha only have one clutch post bolt as standard. For this reason the default clamp will be the BR-G generic clamp

We have brake clamps for:

• BR-G   22mm generic bar clamp
• CL-A    32mm in-line bolt spacing
• CL-B    30mm offset bolt spacing - Brembo XR , GP
• CL-F    30mm in-line as found on Accosato and Hel components
• CL-K    36mm in-line spacing as found on Kawasaki
• CL-J    32mm offset bolts spacing as found on Beringer components

• Unless otherwise specified we will supply the BR-G clamp for this application.

Clamps may be bought separately should you change the clutch at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket clutch parts, or thumb brakes.

Specifications:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our specialty, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone
